You Thought You Understood Compressors? Think Again.
If you’re like most engineers, you learned isentropic efficiency in a thermodynamics class, did a few textbook problems, and moved on. But when you’re faced with real compressors, turbines, or expanders—and actual fluid property data—suddenly that simple concept feels a lot murkier.

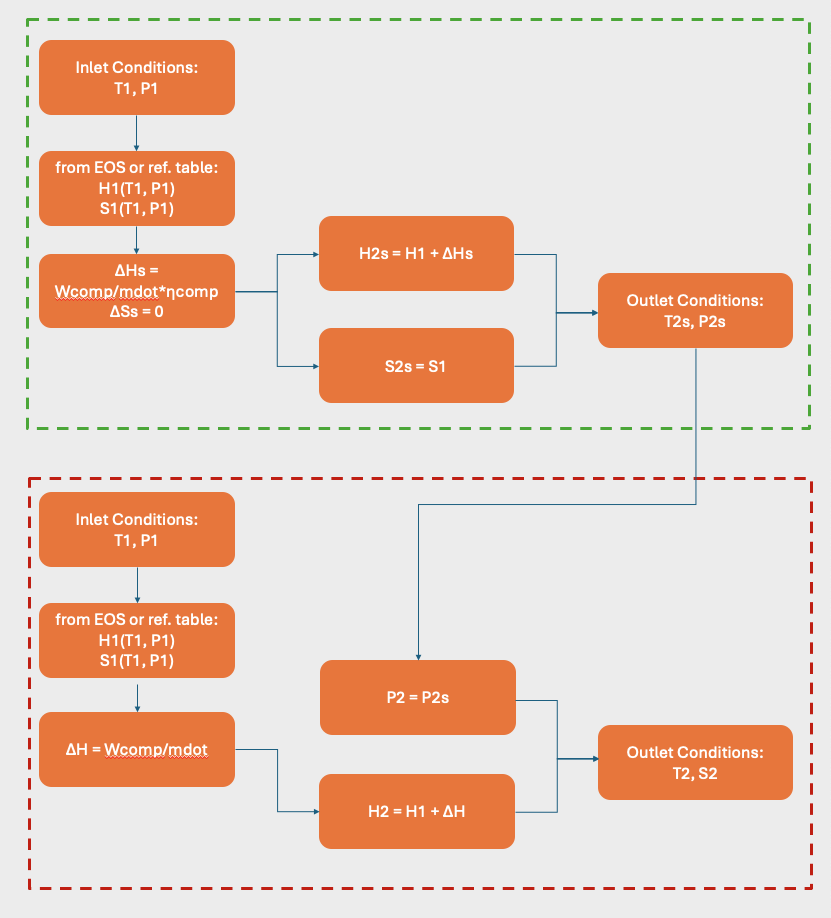

This post is a refresher on isentropic efficiency and a practical guide for how to use it in engineering calculations. We’ll walk through the definition, the calculation steps, and then a few worked examples. Plus, there’s a downloadable tool that can speed things up.
1. What is Isentropic Efficiency?
In thermodynamics, we often learn isentropic efficiency as a textbook ratio: ideal work over actual work. But in real systems, this concept becomes more practical and grounded in how we design processes.
Most real-world energy systems—whether it’s a heat pump, refrigeration loop, or power cycle—are designed around pressure boundaries, not enthalpy targets. That means we’re usually working with:
- A known inlet state (pressure and temperature)
- A fixed outlet pressure determined by the system configuration
- A need to estimate the actual outlet state, given an isentropic efficiency
This is why isentropic efficiency is best defined in terms of enthalpy at fixed pressures, using thermodynamic property data.
Compressor Efficiency
For a compressor, we define isentropic efficiency as:ηcomp=h2s(P2,s1)−h1h2(P2,s2)−h1ηcomp=h2(P2,s2)−h1h2s(P2,s1)−h1
Where:
- h1h1: Enthalpy at the compressor inlet (known from P1,T1P1,T1)
- s1s1: Entropy at the compressor inlet
- h2sh2s: Enthalpy at outlet pressure P2P2, assuming isentropic process (i.e. s2=s1s2=s1)
- h2h2: Actual outlet enthalpy at P2P2, as found via real efficiency
- s2s2: Entropy at the actual outlet state
Why this matters: This definition ties directly to how the system is built—you know where the fluid is going ( P2P2), and how good your machine is ( ηη ). With those two things, you can calculate the energy required to compress the fluid from state 1 to state 2.
Expander or Turbine Efficiency
For turbines or expanders (which output work), the definition flips:ηexp=h1−h2(P2,s2)h1−h2s(P2,s1)ηexp=h1−h2s(P2,s1)h1−h2(P2,s2)
Or equivalently:ηexp=Actual Work OutputIsentropic Work Outputηexp=Isentropic Work OutputActual Work Output
The same principle applies: the final pressure P2P2 is defined by your downstream system, and you’re solving for how much work your real machine will actually deliver compared to the ideal case.
Big Picture Insight
These equations don’t just define a mathematical ratio—they reflect a design truth:
Equipment in real systems is selected and sized based on pressure boundaries.
The inlet pressure comes from the upstream process; the outlet pressure is required by the downstream one. Isentropic efficiency helps you bridge the gap between ideal thermodynamics and the real world.
